5-Person Wireless System with Flightcom Connect

Flightcom’s Portable Wireless System with Flightcom Connect delivers a complete solution for effective communications in demanding high and low noise ground support and aircraft maintenance environments. Rugged and reliable headsets offer hearing protection with superb noise cancelling microphone technology that allows the user to issue hands‐free alerts. No‐squelch push‐to‐talk allows conversations even in low noise settings.

The Flightcom Connect allows users in low noise areas to utilize a lightweight headset, ear buds or speaker to stay in touch with users in high noise environments.  The ComHub is fully portable and designed to interface with the aircraft as seamlessly as a wired headset.

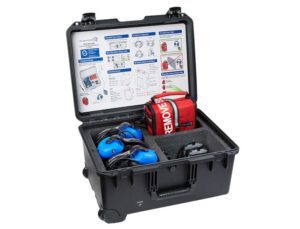

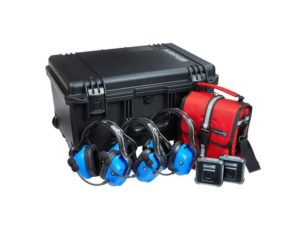

A Pelican Hardigg™ Storm Case™ protects the system, making it easy to store and transport around the ramp and maintenance hangar.

Note: 3rd party device required with Flightcom Connect. See the Flightcom Recommended Devices list for examples.

SYSTEM

• 1.9GHz DECT7 wireless technology
• System case for easy transportation and storage on and off the ramp
• Built‐in charging harness in system case

HEADSET

• Hands‐free operation with programmable squelch
• 1,600‐ft. line of sight transmission range
• No‐squelch push‐to‐talk
• 24‐hour rechargeable battery with a 4‐hour charge time
• Energy‐saving Sleep Mode: More than one year of shelf life without compromising the headset charge
• Simple on/off
• Multicolor LED indicators
• Automatic microphone level
• Battery capacity indicator at power‐on
• Audible and visual 2‐stage low‐battery warning
• Audible out‐of‐range warning
• Foam ear seals for hours of comfortable use
• Built in microphone muff improves clarity by eliminating wind noise
• Noise‐canceling electret microphone ensures optimal clarity
• Enhanced durability and comfort, designed to fit any head size
• Flexible microphone boom for accurate microphone positioning; move it once and it stays in place
• Microphone protected by a layer of waterproof material for outdoor use
• Secure push‐to‐talk button located on each dome for left‐ or right‐handed users
• Stereo listen‐through for situational awareness when the user needs it

FLIGHTCOM CONNECT

• HANDS-FREE, FULL-DUPLEX COMMUNICATION – easily talk with your team while keeping your hands on your work.
• DECT WIRELESS TECHNOLOGY – superior audio and digital security without interference.
• ULTRA-PORTABLE & LIGHTWEIGHT – clip Flightcom Connect to your belt or slide it in a pocket.
• POWER & RANGE – ready when and where you need it most with 24 hours of battery life and 800 feet of range.
• BRING YOUR OWN HEADSET – a flexible solution that allows you to leverage your standard operating equipment – whether a wired or Bluetooth headset or headphones.
• DURABLE DESIGN – rugged, watertight and dust resistant with IP67 rating.
• RADIO INTEGRATION -extend your reach by seamlessly integrating the Flightcom Connect with your two-way radio and Flightcom system.

Note: 3rd party device required with Flightcom Connect. See the Flightcom Recommended Devices list for examples.

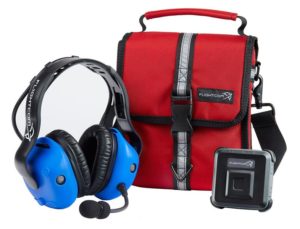

COMHUB

• User‐replaceable coiled cable with Aircraft Interface Plug
• Simple on/off
• 24‐hour rechargeable battery with a 4‐hour charge time
• Weathertight connections and interface

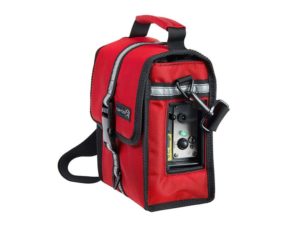

• High visibility, water‐resistant, ballistic nylon ComHub bag with padding to protect the aircraft
• Complete system includes ComHub Bag, “Remove Before Flight” Flag, and Aircraft Hanger Hook
• High brightness LED power indicator
• Pilot Alert when the ground crew loses connection to the ComHub

HEADSETS

• Weight 17.8 oz 504 g
• Operating temperature ‐22°F to 140°F ‐30°C to 60°C
• Storage temperature ‐4°F to 122°F ‐20°C to 50°C
• Charging Temperature 32°F to 113°F 0°C to 45°C
• Noise Reduction Rating 24dB NRR
• Frequency Response 50Hz to 7kHz, ±3dB
• Max. Amb. Noise Level 125dB SPL re 20 uPa
• MIC Sensitivity ‐44 ±5dB, 0dB=1v/ Pa
• Noise Canceling Approximately 6.25 dB/octave from 3.4kHz down to 300Hz
• S/N Ratio 60dB
• Battery 3400mA rechargeable Lithium Ion
• Battery Life >24 hours at 25ºC
• Battery Protection Over voltage, under voltage, over current and over temperature charging
• Charge Jack 2.1mm x 5.5mm, Tip Positive, Barrel Type
• Charge Source 5VDC to 16VDC, 1.5A Max
• Charge Time 4 hours
• IP Rating IP‐66
• Protocol DECT7
• Frequency 1919.808 MHz to 1930.176 MHz
• Range 490m (1,600 feet) line‐of‐sight
• Regulatory FCC‐ & IC‐approved for use in the USA and Canada
• FCC RF Exposure (SAR) 0.003W/kg
• Security 35‐bit DECT Standard Cipher (DSC) for data encryption

FLIGHTCOM CONNECT

• DECT7® Wireless Technology
  • Dynamic channel allocation
  • DECT Standard Cipher with 35-bit initialization vector
  • DECT Range: 800 ft.
  • Frequency Bandwidth: 1920 MHz to 1930 MHz
• Wireless Bluetooth Technology
  • Bluetooth 5.0/4.2 with secure simple pairing
  • Frequency: 2400 MHz-2485 MHz
  • Power: 2.4 mW / 4 dBm
• Physical
  • Weight: 5.8 oz (8.1 oz w/ belt clip)
  • Size: 3” x 3” x 1”
  • Color: Black
  • Button overload resistance: 100lbs
  • Button life: 200k cycles
  • IEC 60068 tumble testing: 300 cycles
• Power
  • 7V rechargeable lithium ion battery
  • More than 24 hours of battery life at 77°F (25°C)
  • Charge time: 4 hours
  • AC Charge Source: supplied; USB Wall Charger 5V, 2.4A
  • DC Charge Source: 5V, 1A minimum, cable supplied
  • Over voltage, under voltage, over current and over temperature protection
• Environmental
  • IP67 Rating
  • Operating temperature -22°F (-30°C) to +140°F (+60°C)
  • Storage temperature -40°F (-40°C) to +122°F (+50°C)
• MIL
  • Humidity per MIL-STD 810F and 810G
  • Temperature Shock per MIL-STD 810F and 810G
  • Chemical Exposure per MIL-STD 810

Note: 3rd party device required with Flightcom Connect. See the Flightcom Recommended Devices list for examples.

COMHUB

• Weight (with bag) 3.7 lb 1.7 kg
• Operating temperature ‐40°F to 149°F ‐40°C to 65°C
• Storage temperature ‐40°F to 149°F ‐40°C to 65°C
• Charging Temperature 14°F to 95°F ‐10°C to 35°C
• Battery 4 x 3400mA rechargeable lithium ion
• Battery Life 24 hours
• Charge Source 9VDC to 16VDC, 2A @ 12V
• Charge Time 4 hours
• IP Rating IP‐67

SYSTEM CASE

• Weight 21 lb 9.5 kg (all equipment included)
• Dimensions 21.7″ x 14.1″ x 8.9″ 55.1 x 35.8 x 22.6 cm
