Flightcom

Flightcom Connect

Communications

  • Wireless DECT7 (800ft)
  • Ultra Portable and Lightweight
  • Bluetooth pair your own headset or use a wired headset*
  • Two-Way Radio transmit / receive
  • Compatible with all Flightcom Wireless Base Stations

Other

  • Waterproof (IP67)
  • Auto Noise Gate
  • All Day, 24 hour battery

*3rd party Bluetooth headset or wired headset required. View the Flightcom Recommended Devices.

  • Description
  • Features
  • Specifications
  • Documents

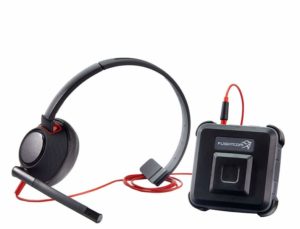

Flightcom Connect is suited for aircraft maintenance, gate agents/customer service, in-flight cabin communication, loading/unloading, assembly, inspection, and trainings where situational awareness is the highest priority. Users simply leverage their existing Bluetooth headset, a wired headset, or speaker to plug in or pair to the Flightcom Connect to communicate with their team up to 800 feet line of sight, hands-free. Flightcom Connect is rugged and rated at IP67, so it’s waterproof and built to last.

Note: 3rd party device required with Flightcom Connect. See the Flightcom Recommended Devices list for examples.

  • HANDS-FREE, FULL-DUPLEX COMMUNICATION
    Easily talk with your team while keeping your hands on your work.
  • DECT WIRELESS TECHNOLOGY
    Superior audio and digital security without interference.
  • ULTRA-PORTABLE & LIGHTWEIGHT

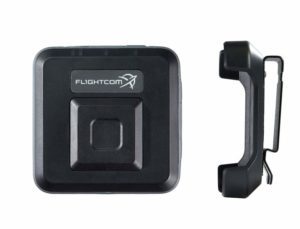

    Clip Flightcom Connect to your belt or slide it in a pocket.
  • POWER & RANGE
    Ready when and where you need it most with 24 hours of battery life and 800 feet of range.
  • BRING YOUR OWN HEADSET
    A flexible solution that allows you to leverage your standard operating equipment – whether a wired or Bluetooth headset or headphones.
  • DURABLE DESIGN
    Rugged, watertight and dust resistant with IP67 rating.
  • RADIO INTEGRATION
    Extend your reach by seamlessly integrating the Flightcom Connect with your two-way radio and Flightcom system.

DECT7® Wireless Technology

  • Dynamic channel allocation
  • DECT Standard Cipher with 35-bit initialization vector
  • DECT Range: 800 ft.
  • Frequency Bandwidth: 1920 MHz to 1930 MHz

Wireless Bluetooth Technology

  • Bluetooth 5.0/4.2 with secure simple pairing
  • Frequency: 2400 MHz-2485 MHz
  • Power: 2.4 mW / 4 dBm

Physical

  • Weight: 5.8 oz (8.1 oz w/ belt clip)
  • Size: 3” x 3” x 1”
  • Color: Black
  • Button overload resistance: 100lbs
  • Button life: 200k cycles
  • IEC 60068 tumble testing: 300 cycles

Power

  • 3.7V rechargeable lithium ion battery
  • More than 24 hours of battery life at 77°F (25°C)
  • Charge time: 4 hours
  • AC Charge Source: supplied; USB Wall Charger 5V, 2.4A
  • DC Charge Source: 5V, 1A minimum, cable supplied
  • Over voltage, under voltage, over current and over temperature protection

Environmental

  • IP67 Rating
  • Operating temperature -22°F (-30°C) to +140°F (+60°C)
  • Storage temperature -40°F (-40°C) to +122°F (+50°C)

MIL

  • Humidity per MIL-STD 810F and 810G
  • Temperature Shock per MIL-STD 810F and 810G
  • Chemical Exposure per MIL-STD 810

SAE

  • Salt Spray per J1455, Sec. 4.3
  • Vibration per J1455, Sec. 4.9
  • Conducted Immunity per J1113-11
  • Electrostatic Discharge per J1113-13
  • Radiated Emissions per J1113-41

ISO

  • Conducted Transients per 7637-2
  • Quality Management System ISO 9001:2008
