Flightcom

4DLX Classic

Budget-friendly headset

  • Wide, comfortable air-pillow headpad
  • Combined liquid and foam ear seals
  • Stereo/mono switchable
  • NRR 24dB
  • Weighs 16.8 ounces
  • Mic muff and cloth ear seal covers included
  • 3-year warranty
  • Description
  • Features
  • Specifications
  • Documents

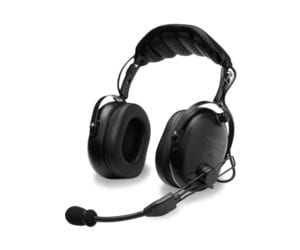

The 4DLX Classic is a general aviation style headset at a price to fit any budget. The dual volume controls allow for independent volume adjustment in each ear dome and the precision flex boom, with noise canceling electret microphone, provides exact positioning.

  • Wide, comfortable air-pillow headpad
  • Combined liquid and foam ear seals
  • Stereo/mono switchable
  • NRR 24dB
  • Weighs 16.8 ounces
  • Mic muff and cloth ear seal covers included
  • Three-year warranty

HEADSET

  • Sensitivity: 104 dB re .0002 microbar @ 1000 Hz, 1mW
  • Frequency Response: 100-17,000 Hz +/- 5 dB in 6cc coupler
  • Impedance: 600 ohms nominal, 150 to 1200 ohm source
  • Weight: 16.8 ounces without comm cable
  • Weight of comm cable: 3.1 ounces
  • Shielded cable: Full floating with independent ground
  • Noise Reduction Rating: 24 dB

MICROPHONE

  • DC Bias Supply: 8 to 16 volts, not polarity sensitive
  • Source Resistance: 220 to 2200 ohms
  • Output Voltage: 370 mV @ 114 dB spl re .0002 microbar
  • Frequency Response: Optimized for speech clarity and noise reduction
  • Maximum Ambient Noise Level: 120 dB spl re .002 microbar
