Flightcom

5DX Classic

Rugged aviation headset

  • Dual volume controls
  • Soft silicone gel ear seals
  • Washable polar-fleece headpad
  • Stereo/mono switch ensures audio compatibility
  • 22dB NRR
  • 3-year warranty
  • Description
  • Features
  • Specifications
  • Documents

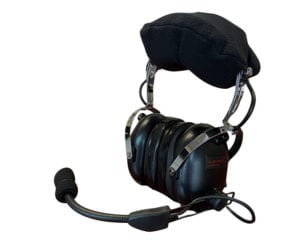

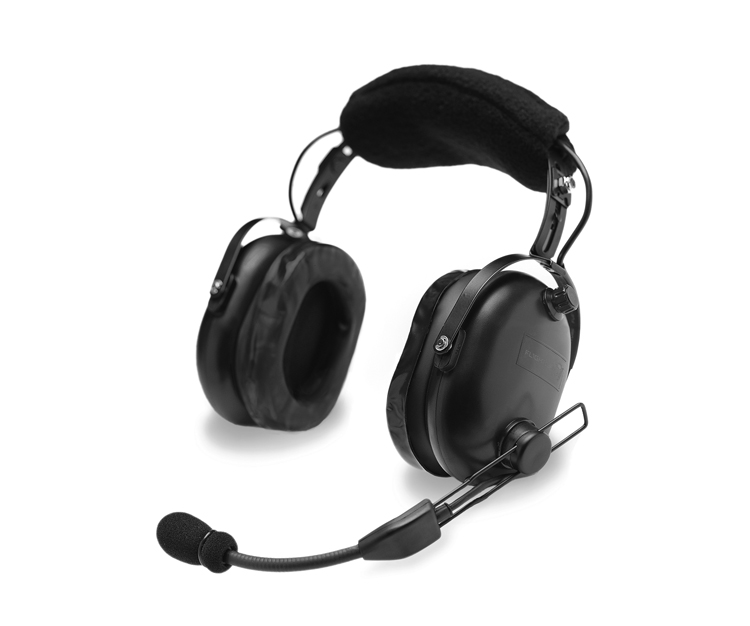

A conventional general aviation style headset, the 5DX Classic ensures long-life ruggedness. The dual volume controls allow for independent volume adjustment in each ear dome. The precision flex boom, with noise canceling electret microphone, provides exact positioning.

  • Washable polar-fleece headpad
  • Soft silicone gel ear seals
  • Stereo/mono switch ensures audio compatibility
  • NRR 22dB
  • Weighs 17.9 oz.
  • Mic muff and cloth ear seal covers included
  • 3-year warranty

HEADSET

  • Sensitivity: 104 dB re .0002 microbar @ 1000 Hz, 1mW
  • Frequency Response: 100-17,000 Hz +/- 5 dB in 6cc coupler
  • Impedance: 600 ohms nominal, 150 to 1200 ohm source
  • Weight: 17.9 ounces without comm cable
  • Weight of comm cable: 3.1 ounces
  • Shielded cable: Full floating with independent ground
  • Noise Reduction Rating: 22 dB

MICROPHONE

  • DC Bias Supply: 8 to 16 volts, not polarity sensitive
  • Source Resistance: 220 to 2200 ohms
  • Output Voltage: 370 mV @ 114 dB spl re .0002 microbar
  • Frequency Response: Optimized for speech clarity and noise reduction
  • Maximum Ambient
  • Noise Level: 120 dB spl re .002 microbar
